Diameter:Φ6,Φ8,Φ10,Φ12,Φ14,Φ18,Φ20,Φ25,Φ30,Φ35,Φ38,Φ40,
Φ43,Φ45,Φ50,Φ55,Φ60,Φ65,Φ68,Φ70,Φ75,Φ80,Φ85,Φ90,
Φ95,Φ100,Φ105,Φ110,Φ115,Φ120,Φ125,Φ130
Customized support : OEM , ODM, OBM
Shank : M14 or 5/8-11" thread
Process type : Vacuum brazed technology
Brand: JMTLS
MOQ : 1 pcs
Working Length : 80mm ~ 300mm
Diamond Height : 10mm
Diamond Grit : 30/35# 40/45# 60/80#
Usage : Dry & wet drilling
Machine : It can be installed in angle grinders and any pistol drills
Application : Marble , ceramic , granite , porcelain , drilling holes
Product name | Diamond drill bits |
Craft | New brazing process |
Colour | Any |
Material | New brazing process |
Opening diameter | Φ8,Φ10,Φ12,Φ14,Φ18,Φ20,Φ25,Φ30,Φ35,Φ38,Φ40, Φ43,Φ45,Φ50,Φ55,Φ60,Φ65,Φ68,Φ70,Φ75,Φ80,Φ85, Φ90,Φ95,Φ100,Φ105,Φ110,Φ115,Φ120,Φ125,Φ130 |
Sand high | 10mm/15mm |
Total length | 60mm/62mm/70mm/90mm |
Recommended speed | Above 11000 |
Scope of application | Ceramic tiles, vitrified tiles, ordinary glass, marble porcelain,artificial stone |

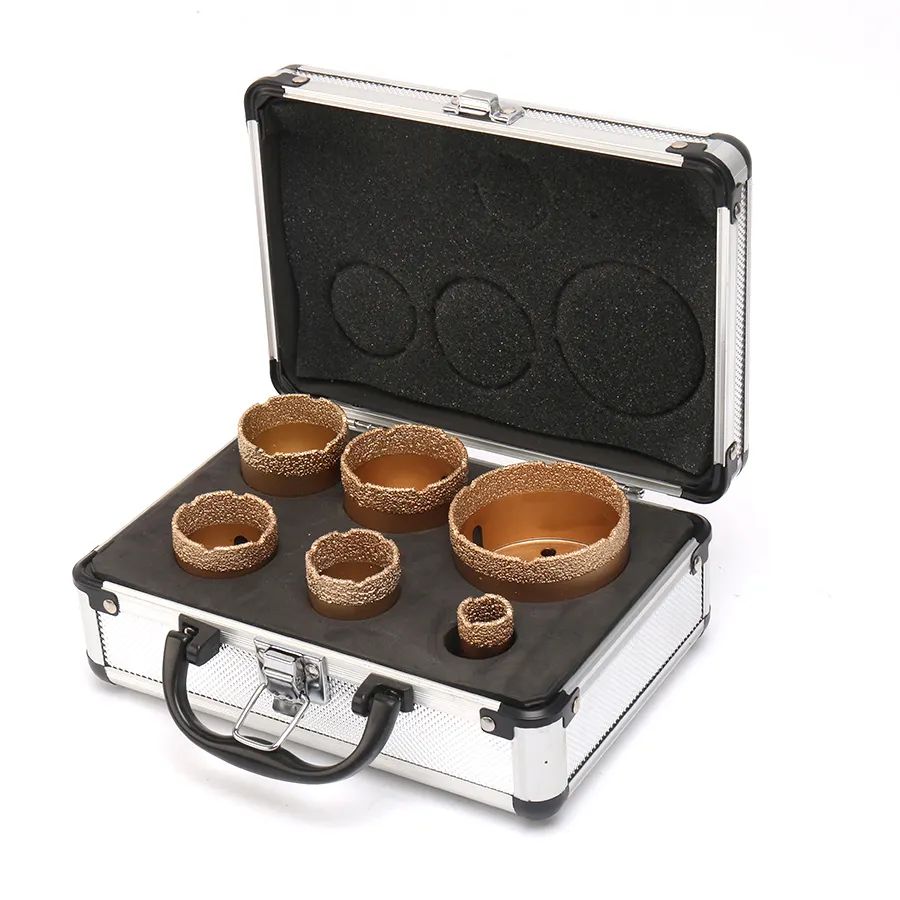

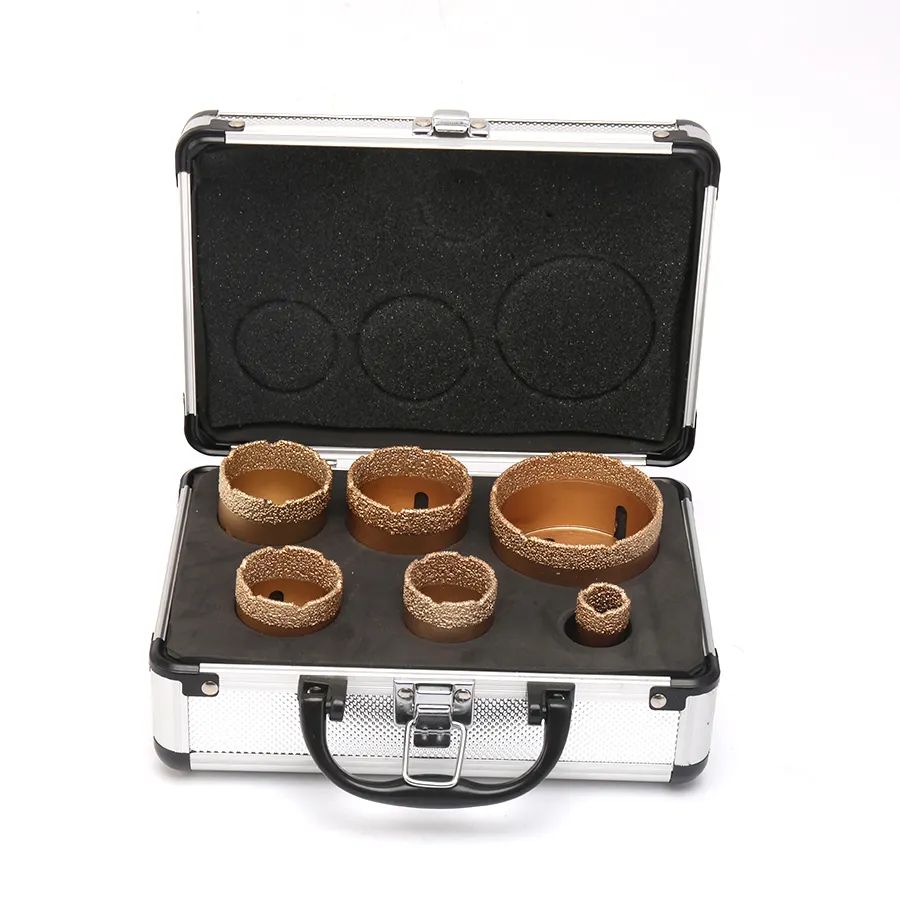

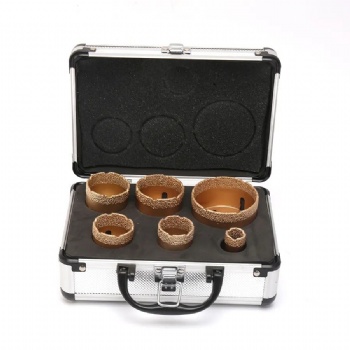

Package | in paper box, plastic tube, Aluminum Case or double blister, etc |
Features | This product is specially developed for the drilling of superhard materials such as stone without water. It combines the sharpness of [glass hole saw] with the durability of [sintered hole saw], and can easily drill holes for hard tiles/ marbles! Using a new brazing process, the process can firmly fix the diamond particles on the substrate, and it is not easy to fall off, the diamond has high density, sharpness, more wear resistance, longer life,dry drill and good effect! There is no need to replace the grinding head frequently, which saves working time and greatly improves the production and processing efficiency. The high-strength steel matrix is used, and there is no potential safety hazard caused by fragmentation and flying out. |
